Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
Socket AM5
Processori compatibili
A processor which is compatible with this device
AMD Ryzen™ 7
Socket Processori supportati
The sockets (plugs) for processors that are supported (can be used) by the device.
Socket AM5
Memoria interna massima supportata dal processore
256 GB
Memoria
Tipi di memoria supportati
Types of memory which can be used with the product.
DDR5-SDRAM
Numero di slot di memoria
4
tipo di slot di memoria
A memory slot
DIMM
Canali di memoria
Dual-channel
Compatibilità ECC
Non-ECC
Controller di archiviazione
Tipi di unità di archiviazione supportate
The type of storage drives the device is compatible with.
HDD & SSD
Interfacce dell'unità di archiviazione supportate
M.2, SATA III
Supporto RAID
The device uses RAID
Livelli RAID
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways
0, 1, 10
Grafica
Scheda grafica integrata
Graphics hardware which is built into the motherboard or CPU
I/O interni
Connettori USB 2.0
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
4
Numero di connettori SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
Numero totale di connettori SATA
4
Connettore ATX (24-PIN)
Connettore ventola CPU
Connettore di potenza EPS (8-Pin)

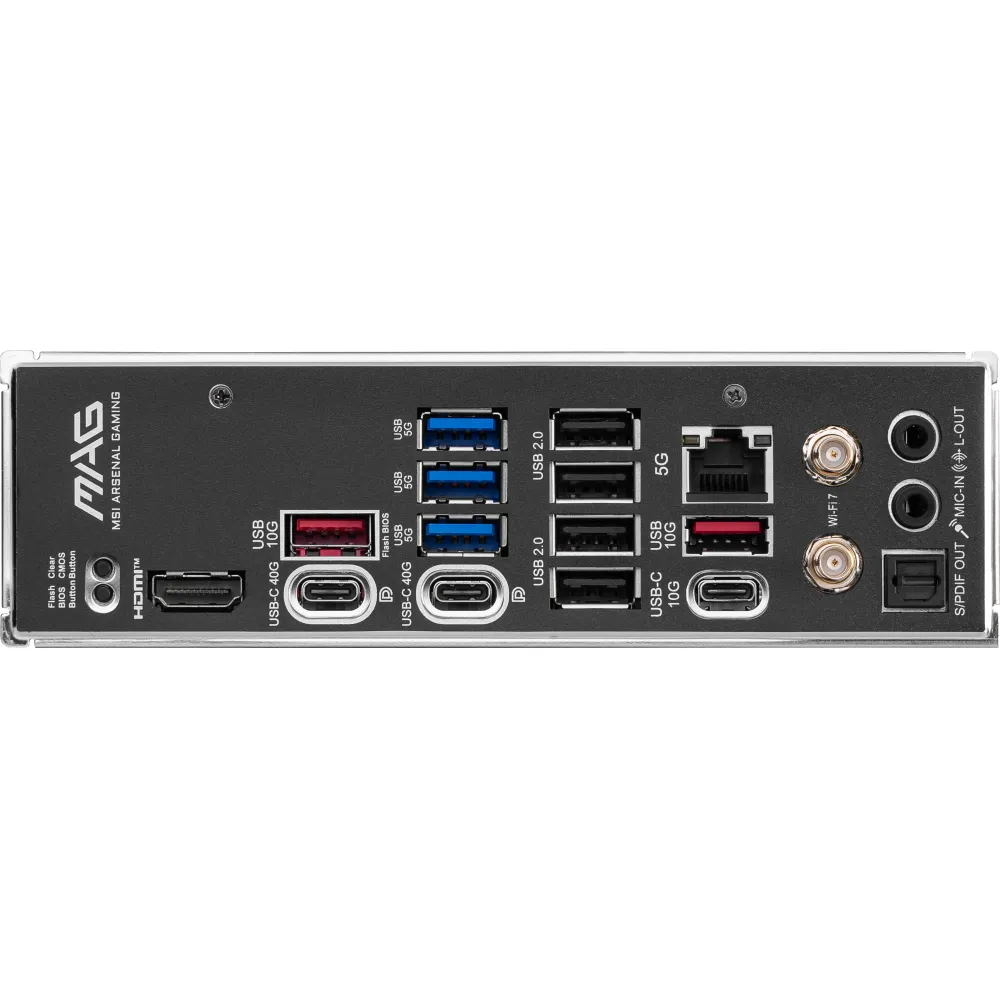

Pannello posteriore porte I/O
Quantità porte USB 2.0
La porta USB 2.0 ha una velocità di trasmissione data di 480 Mbps ed è diversamente compatibile con la porta USB 1.1 .Si può collegare qualsiasi tipo di dispositivo periferico a questi.
4
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A
6
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo C
Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
2
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A
2
Pannello posteriore porte I/O
Quantità di porte USB4 Gen 2x2
2
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Quantità porte HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
Quantità DisplayPorts
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor
2
Microfono, spinotto d'ingresso
The socket where a microphone is connected to the device.
Porta uscita S/PDIF
S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.
Collegamento in rete
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present
Tipo di interfaccia Ethernet
2.5 Gigabit Ethernet
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standard
Connection of this device is done via Wi-Fi in a high standard.
Wi-Fi 7 (802.11be)
Standard Wi-Fi
The type of wireless local area network (LAN). It can be ad-hoc
Wi-Fi 7 (802.11be)
Bluetooth
Bluetooth è una tecnologia radio basata su basso consumo di energia sviluppata per sostituire i cavi attualmente usati per collegare dispositivi elettronici come computer, stampanti e una larga gamma di dispositivi manuali inclusi i telefoni cellulari. Grazie alla connessione di onde radio, un dispositivo Bluetooth è in grado di stabilire una connessione costante verso qualsiasi browser. Questo risparmia all' utente la fatica, ad esempio, di accedere ad internet per controllare le emails o controllare aggiornamenti
Versione Bluetooth
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
5.4
Caratteristiche
Chipset scheda madre
The chipset connects the microprocessor to the rest of the motherboard.
AMD X870
Sistema audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 canali
Colore del prodotto
The colour e.g. red
Nero
Monitoraggio dello stato di salute del PC
CPU, Ventilatore, Temperatura, Tension
Componente per
What this product is used as a part of (component for).
