Asus PRO WS W680-ACE IPMI

Asus PRO WS W680-ACE IPMI Intel W680 LGA 1700 ATX

Motherboard Asus PRO WS W680-ACE IPMI
  • Asus PRO WS W680-ACE IPMI Intel W680 LGA 1700 ATX
  • Asus PRO WS W680-ACE IPMI Intel W680 LGA 1700 ATX
  • Asus PRO WS W680-ACE IPMI Intel W680 LGA 1700 ATX
  • Asus PRO WS W680-ACE IPMI Intel W680 LGA 1700 ATX
  • Asus PRO WS W680-ACE IPMI Intel W680 LGA 1700 ATX
  • Asus PRO WS W680-ACE IPMI Intel W680 LGA 1700 ATX

Prezzo: 691,00€
  • Categoria: Motherboard
  • Marca: Asus
  • Modello: PRO WS W680-ACE IPMI
  • Codice Produttore: 90MB1DN0-M0EAY0
  • Ean: 4711387005934
  • Spedizione: 15,00 €
  • Ritiro in negozio: Gratis
  • Pagamento:
  • Disponibilità: Non Disponibile

Asus PRO WS W680-ACE IPMI Intel W680 LGA 1700 ATX

Brand:Asus
Nome del prodotto:PRO WS W680-ACE IPMI
Codice prodotto:90MB1DN0-M0EAY0
Codice EAN/UPC:4711387005934
  • Intel LGA 1700 Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • PC ATX Intel W680 7.1 canali
  • DDR5-SDRAM 4 DIMM Data Integrity Check (verifica integrità dati) Non-ECC RAM massima supportata: 128 GB
  • HDD & SSD M.2, NVMe, SATA III Supporto RAID
  • Tipo BIOS: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet
Brochure Asus 90MB1DN0-M0EAY0 (pdf)

Specifiche

Processore
Produttore processore
The manufacturer that produced the processor.
Intel
Presa per processore
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
LGA 1700
Processori compatibili
A processor which is compatible with this device
Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Numero massimo processori SMP
processore MP
1
Socket Processori supportati
The sockets (plugs) for processors that are supported (can be used) by the device.
LGA 1700
Memoria
Tipi di memoria supportati
Types of memory which can be used with the product.
DDR5-SDRAM
Numero di slot di memoria
4
tipo di slot di memoria
A memory slot
DIMM
Canali di memoria
Dual-channel
Data Integrity Check (verifica integrità dati)
ECC è il codice di correzione dell'errore che la memoria è capace di individuare e correggere senza l'intervento dell' utente
Non-ECC
RAM massima supportata
The maximum internal memory which is available in the product.
128 GB
Senza buffer
Controller di archiviazione
Tipi di unità di archiviazione supportate
The type of storage drives the device is compatible with.
HDD & SSD
Interfacce dell'unità di archiviazione supportate
M.2, NVMe, SATA III
Supporto RAID
The device uses RAID
Livelli RAID
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways
0, 1, 5, 10
Grafica
Tecnologia di processo parallela
Parallel processing technology is the simultaneous use of more than one CPU or processor Core™ to execute a program or multiple computational threads. Ideally
Non supportato
I/O interni
Connettori USB 2.0
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
Connettori USB 3.2 Gen 1 (3.1 Gen 1)
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
1
Connettori USB 3.2 Gen 2 (3.1 Gen 2)
1
Numero di connettori SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
Connettore pannello audio frontale
Connettore del pannello anteriore
Connettore ATX (24-PIN)
Connettore ventola CPU
Numero di connettori ventola chassis
3
Connettori periferiche (Molex) (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.
1
Connettore di potenza EPS (8-Pin)
Numero di connettori COM
1
Connettore TPM
Porte Thunderbolt
1
Connettore con potenza 12V
porte SAS integrate
1
Pannello posteriore porte I/O
Quantità porte USB 2.0
La porta USB 2.0 ha una velocità di trasmissione data di 480 Mbps ed è diversamente compatibile con la porta USB 1.1 .Si può collegare qualsiasi tipo di dispositivo periferico a questi.
2
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A
4
Pannello posteriore porte I/O
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A
1
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo C
Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
Porta IPMI LAN (RJ-45)
Quantità porte VGA (D-Sub)
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
Quantità porte HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
Versione HDMI
2.1
Quantità DisplayPorts
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor
1
versione DisplayPort
1.4
Ingresso di linea
Microfono, spinotto d'ingresso
The socket where a microphone is connected to the device.
Collegamento in rete
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present
Tipo di interfaccia Ethernet
2.5 Gigabit Ethernet
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Caratteristiche
Chipset scheda madre
The chipset connects the microprocessor to the rest of the motherboard.
Intel W680
Sistema audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 canali
Componente per
What this product is used as a part of (component for).
PC
Fattore di forma scheda madre
Design of the motherboard (ATX
ATX
Famiglia di chipset per scheda madre
The category of motherboard chipset e.g. Intel
Intel
Tipo di raffreddamento
The method used to cool the device or to cool the air around the device.
Passivo
Tipologia alimentazione
What the power source is.
ATX
Sistema operativo Windows supportato
Windows vesions wich can be used with the device.
Windows 10, Windows 11
Slot espansione
Slot PCI Express x1 (Gen 3.x)
1
Slot PCI Express x16 (Gen 3.x)
Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard.
2
Slot PCI Express x16 (Gen 5.x)
2
Numero di slot di M.2 (M)
3
BIOS
Tipo BIOS
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
Dimensione memoria BIOS
256 Mbit
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
305 mm
Profondità
The distance from the front to the back of something.
244 mm

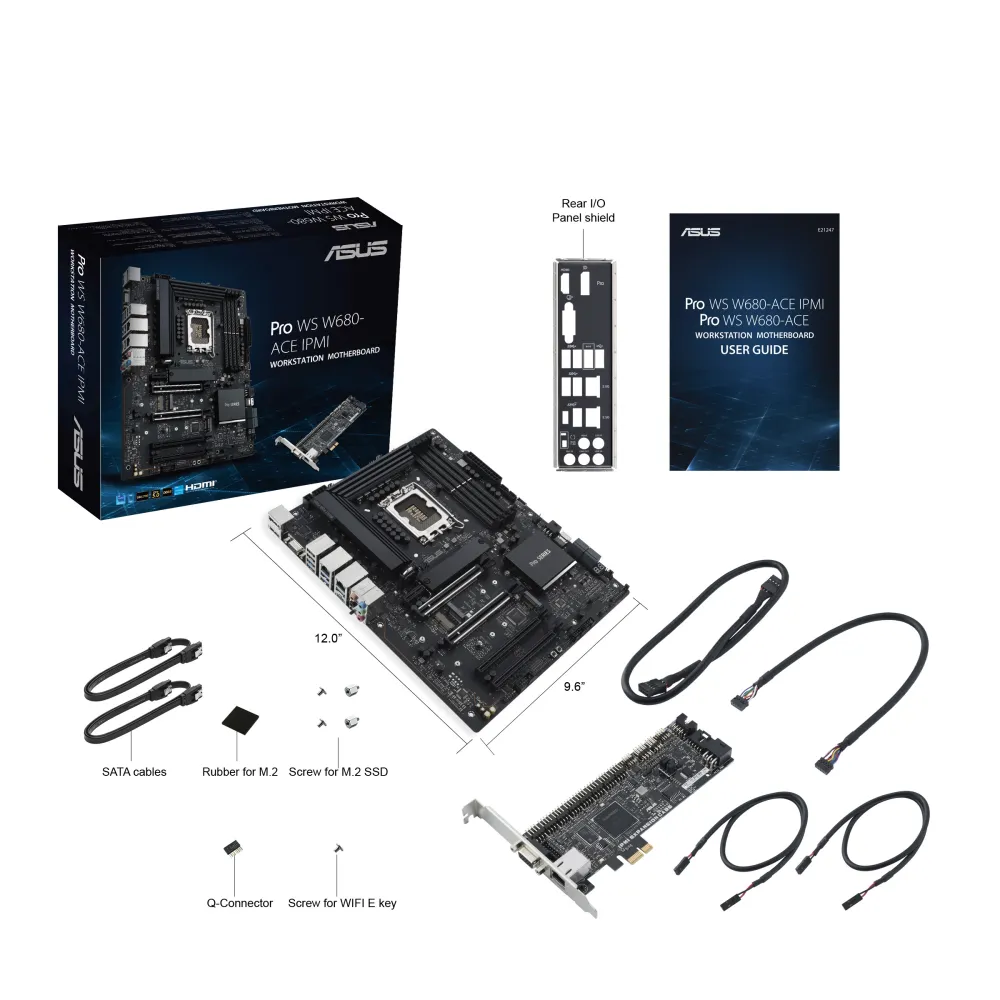

Contenuto dell'imballo
Cavi inclusi
SATA, USB
Guida utente
Altre caratteristiche
bottone Back-to-BIOS
Numero di slot per M.2 (E)
1
