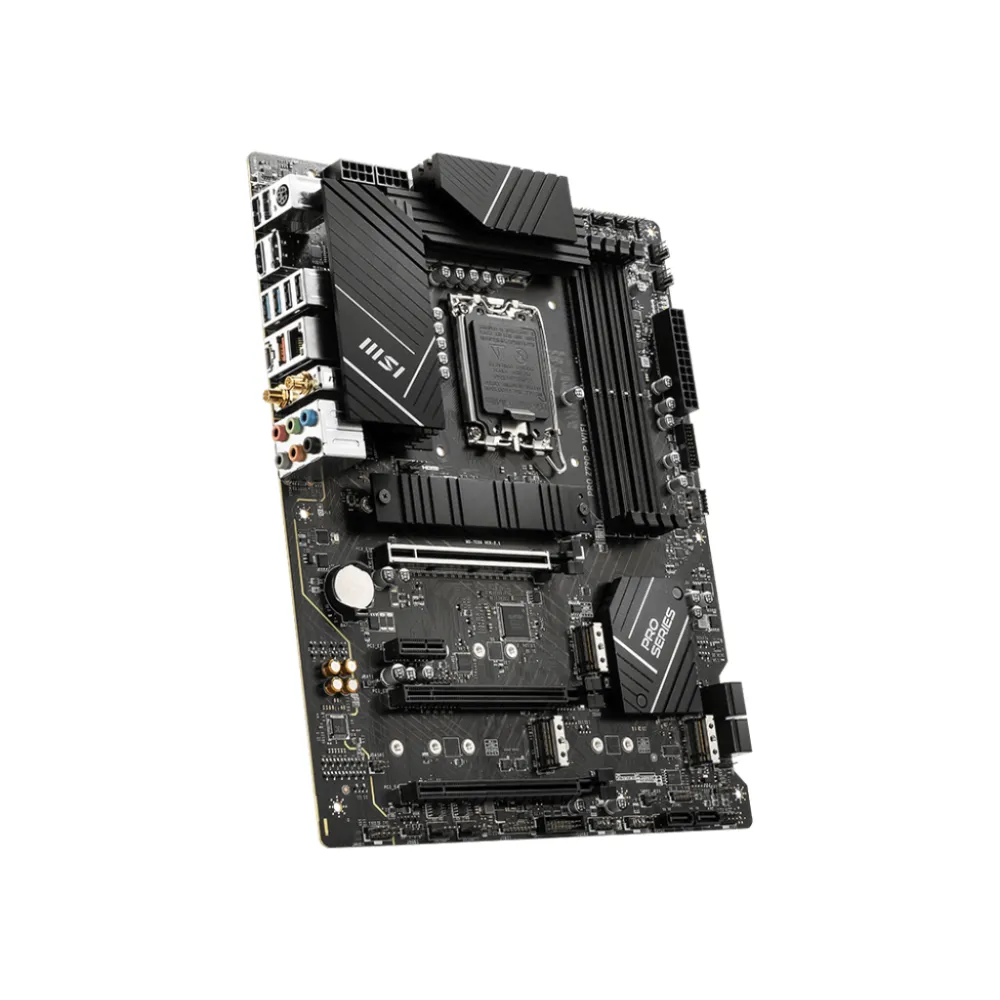

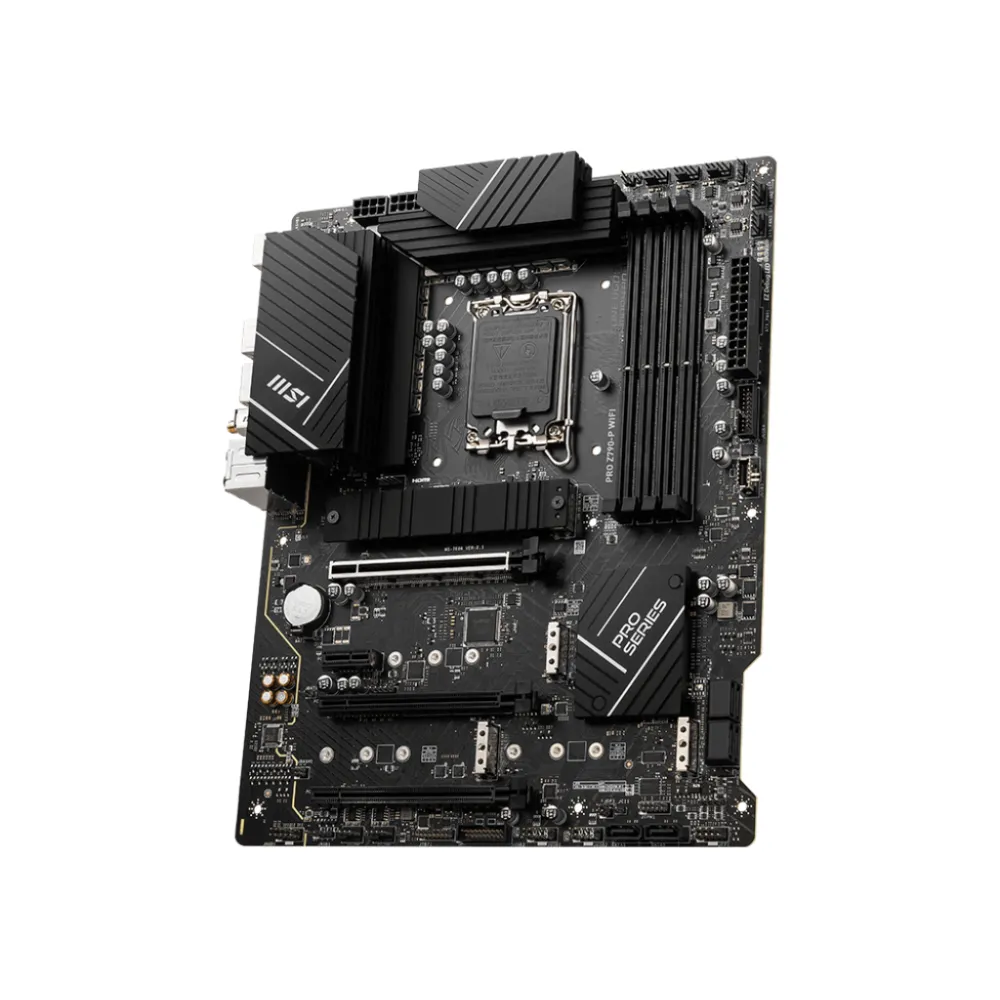

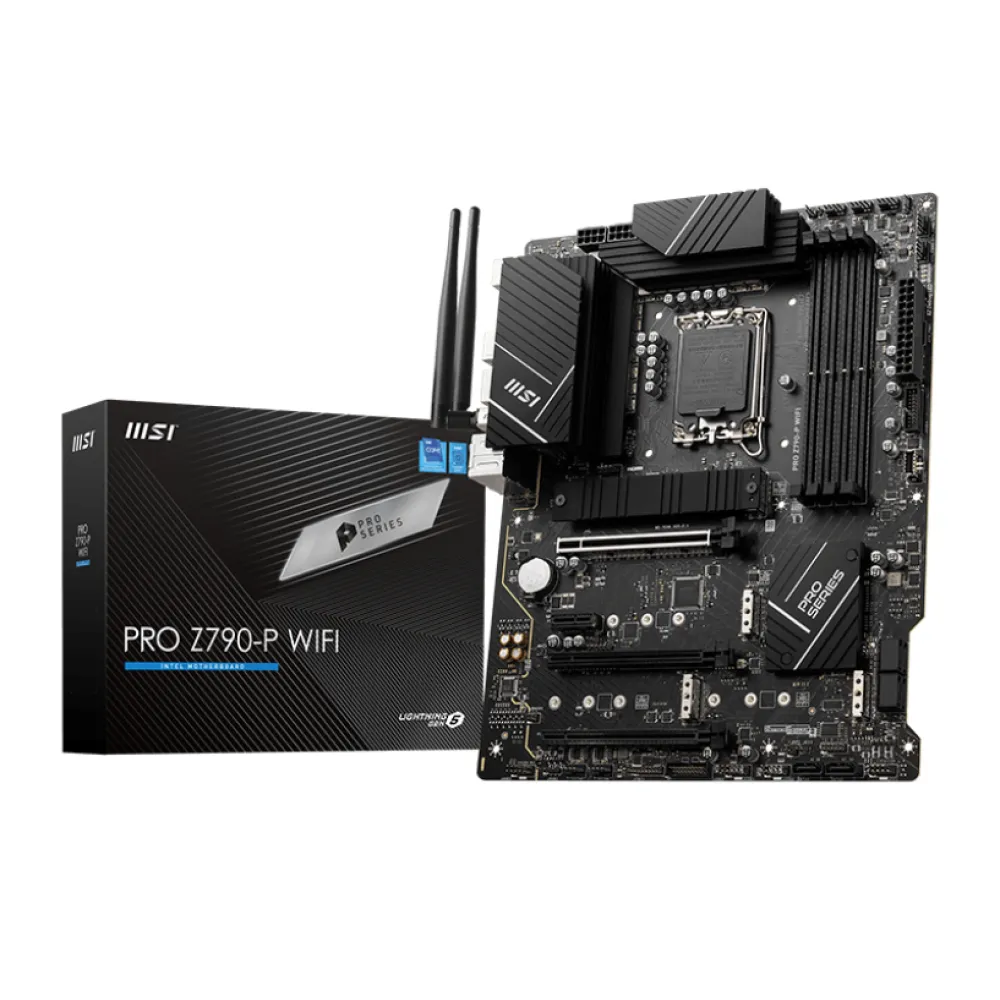

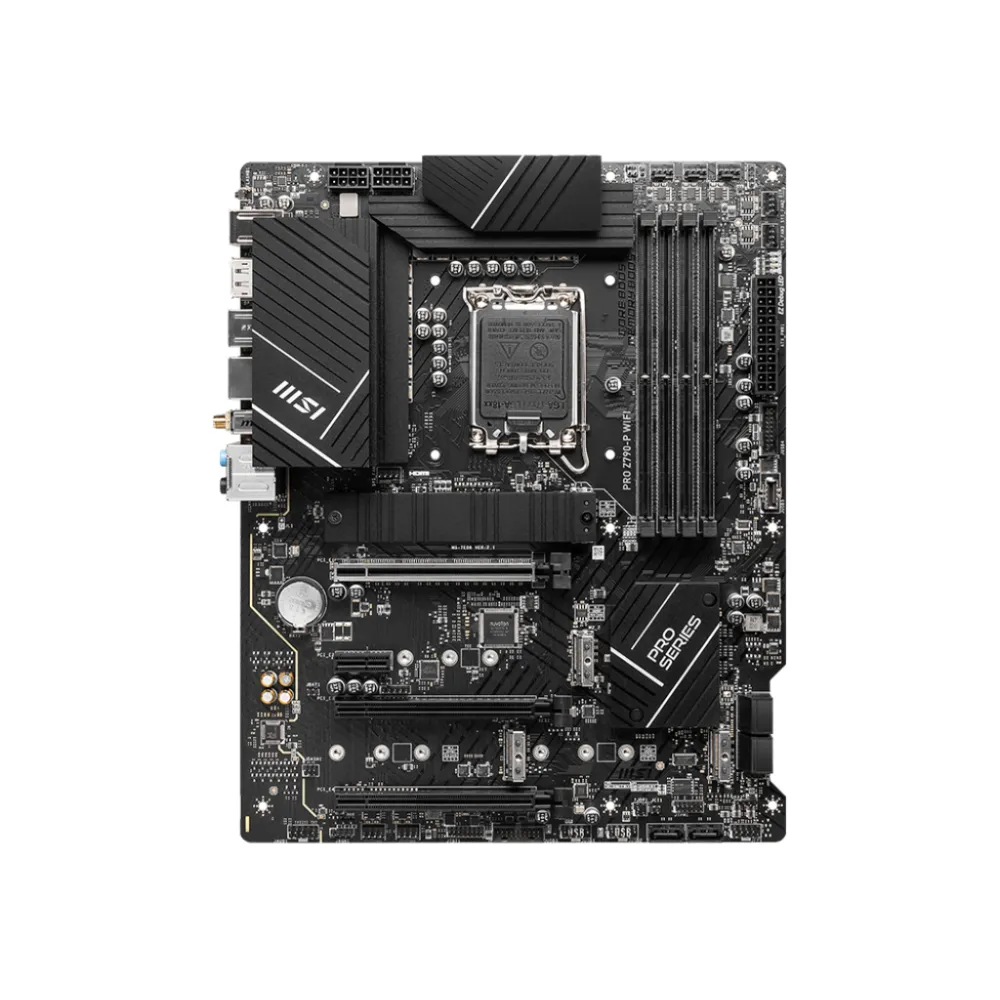

Msi PRO Z790-P WIFI

MSI PRO Z790-P WIFI scheda madre Intel Z790 LGA 1700 ATX

Motherboard Msi PRO Z790-P WIFI
  • MSI PRO Z790-P WIFI scheda madre Intel Z790 LGA 1700 ATX
  • MSI PRO Z790-P WIFI scheda madre Intel Z790 LGA 1700 ATX
  • MSI PRO Z790-P WIFI scheda madre Intel Z790 LGA 1700 ATX
  • MSI PRO Z790-P WIFI scheda madre Intel Z790 LGA 1700 ATX
  • MSI PRO Z790-P WIFI scheda madre Intel Z790 LGA 1700 ATX

Prezzo: 238,00€
  • Categoria: Motherboard
  • Marca: Msi
  • Modello: PRO Z790-P WIFI
  • Codice Produttore: PRO Z790-P WIFI
  • Ean: 4711377015738
  • Spedizione: 15,00 €
  • Ritiro in negozio: Gratis
  • Pagamento:
  • Disponibilità: Ordinabile
Brand:MSI
Nome del prodotto:PRO Z790-P WIFI
Codice prodotto:PRO Z790-P WIFI
Codice EAN/UPC:4711377015738
0824142302125, 824142302125
  • Intel LGA 1700 Intel® Celeron®, Intel® Pentium® Gold
  • PC ATX Intel Z790 Realtek ALC897 7.1 canali
  • DDR5-SDRAM 4 Non-ECC RAM massima supportata: 128 GB
  • HDD & SSD M.2, PCI Express Supporto RAID
  • Tipo BIOS: UEFI AMI 256 Mbit
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3

Specifiche

Processore
Produttore processore
The manufacturer that produced the processor.
Intel
Presa per processore
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
LGA 1700
Processori compatibili
A processor which is compatible with this device
Intel® Celeron®, Intel® Pentium® Gold
Socket Processori supportati
The sockets (plugs) for processors that are supported (can be used) by the device.
LGA 1700
Memoria
Tipi di memoria supportati
Types of memory which can be used with the product.
DDR5-SDRAM
Numero di slot di memoria
4
Data Integrity Check (verifica integrità dati)
ECC è il codice di correzione dell'errore che la memoria è capace di individuare e correggere senza l'intervento dell' utente
Non-ECC
Velocità di memoria supportate
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
4800, 5000, 5200, 5400, 5800, 6000, 6400, 6600, 6800, 7000 MHz
Velocità di clock della memoria supportata (max)
7000 MHz
RAM massima supportata
The maximum internal memory which is available in the product.
128 GB
Controller di archiviazione
Tipi di unità di archiviazione supportate
The type of storage drives the device is compatible with.
HDD & SSD
Interfacce dell'unità di archiviazione supportate
M.2, PCI Express
Capacità memoria interna
The amount e.g of data which can be stored inside the device.
10 GB
Supporto RAID
The device uses RAID
Livelli RAID
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways
0, 1, 5, 10
Grafica
Tecnologia di processo parallela
Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally
Non supportato
Scheda grafica integrata
Graphics hardware which is built into the motherboard or CPU
I/O interni
Connettori USB 2.0
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
4
Connettori USB 3.2 Gen 1 (3.1 Gen 1)
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
4
Connettori USB 3.2 Gen 2 (3.1 Gen 2)
1
Numero di connettori SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
6
Connettore pannello audio frontale
Connettore del pannello anteriore
Connettore TPM
Connettore LED RGB

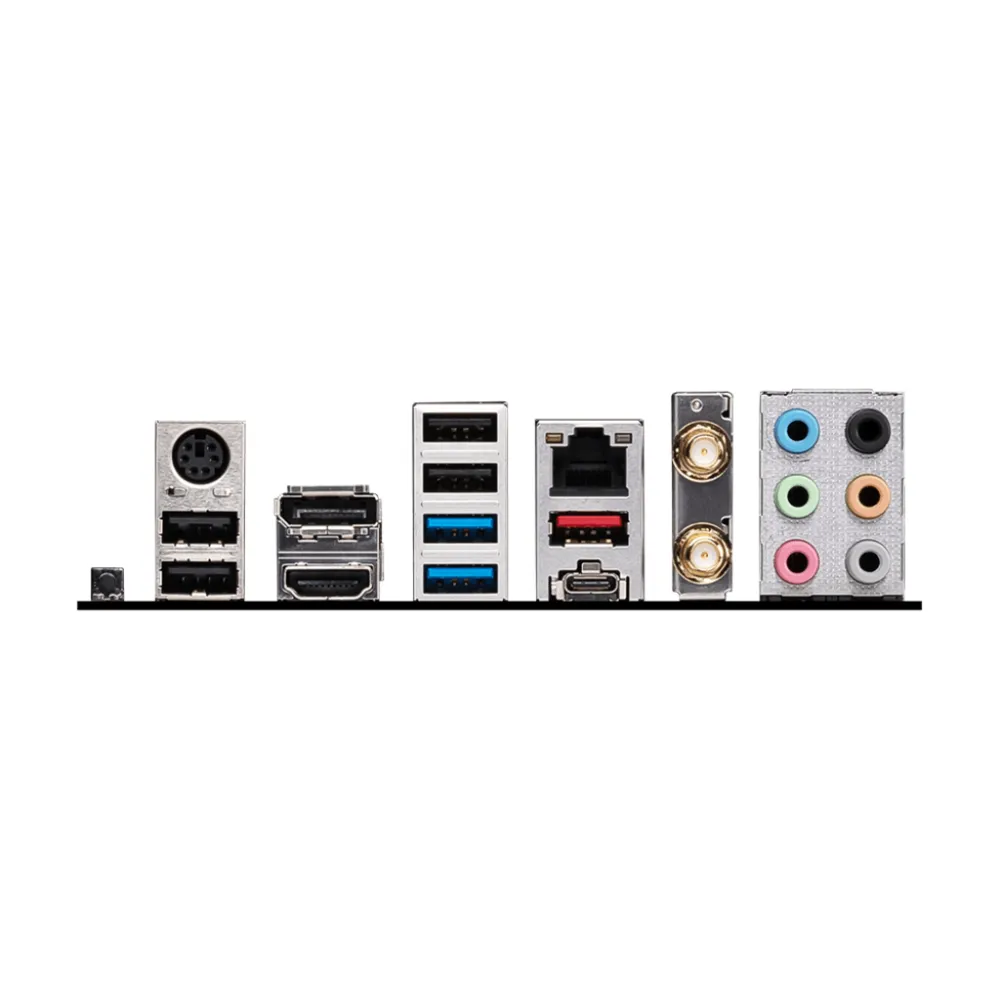

Pannello posteriore porte I/O
Quantità porte USB 2.0
La porta USB 2.0 ha una velocità di trasmissione data di 480 Mbps ed è diversamente compatibile con la porta USB 1.1 .Si può collegare qualsiasi tipo di dispositivo periferico a questi.
4
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A
2
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A
1
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo C
Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
Quantità di porte USB 3.2 Gen 2x2 Tipo C
1
Pannello posteriore porte I/O
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Quantità porte HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
Versione HDMI
2.1
Quantità DisplayPorts
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor
1
versione DisplayPort
1.4
Porta uscita S/PDIF
S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.
Collegamento in rete
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present
Tipo di interfaccia Ethernet
2.5 Gigabit Ethernet
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standard
Connection of this device is done via Wi-Fi in a high standard.
Wi-Fi 6 (802.11ax)
Standard Wi-Fi
The type of wireless local area network (LAN). It can be ad-hoc
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Bluetooth
Bluetooth è una tecnologia radio basata su basso consumo di energia sviluppata per sostituire i cavi attualmente usati per collegare dispositivi elettronici come computer, stampanti e una larga gamma di dispositivi manuali inclusi i telefoni cellulari. Grazie alla connessione di onde radio, un dispositivo Bluetooth è in grado di stabilire una connessione costante verso qualsiasi browser. Questo risparmia all' utente la fatica, ad esempio, di accedere ad internet per controllare le emails o controllare aggiornamenti
Versione Bluetooth
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
5.3
Caratteristiche
Chipset scheda madre
The chipset connects the microprocessor to the rest of the motherboard.
Intel Z790
Chip audio
Realtek ALC897
Sistema audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 canali
Colore del prodotto
The colour e.g. red
Nero
Componente per
What this product is used as a part of (component for).
PC
Fattore di forma scheda madre
Design of the motherboard (ATX
ATX
Famiglia di chipset per scheda madre
The category of motherboard chipset e.g. Intel
Intel
Sistema operativo Windows supportato
Windows vesions wich can be used with the device.
Windows 10 x64, Windows 11 x64
Slot espansione
Numero di slot di M.2 (M)
4
BIOS
Tipo BIOS
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
Dimensione memoria BIOS
256 Mbit
Versione System management BIOS (SMBIOS)
3.5
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
304,8 mm
Profondità
The distance from the front to the back of something.
243,8 mm
Contenuto dell'imballo
Cavi inclusi
SATA
Software forniti
Software distributed with another product such as a piece of computer hardware or other electronic device
Drivers MSI Center Intel Extreme Tuning Utility CPU-Z MSI GAMING Norton 360 Deluxe AIDA64 Extreme - MSI Edition
