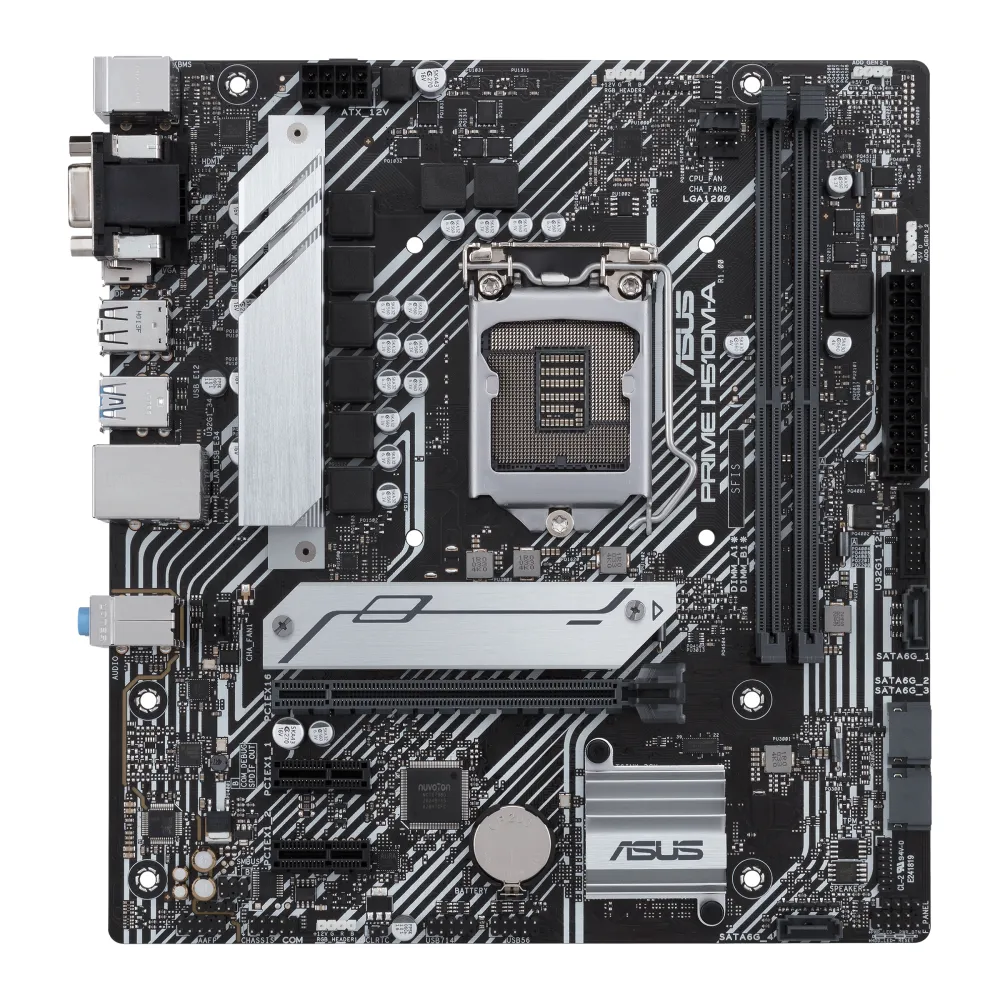

Asus PRIME H510M-A

ASUS PRIME H510M-A Intel H510 LGA 1200 (Socket H5) micro ATX

Motherboard Asus PRIME H510M-A
  • ASUS PRIME H510M-A Intel H510 LGA 1200 (Socket H5) micro ATX
  • ASUS PRIME H510M-A Intel H510 LGA 1200 (Socket H5) micro ATX
  • ASUS PRIME H510M-A Intel H510 LGA 1200 (Socket H5) micro ATX
  • ASUS PRIME H510M-A Intel H510 LGA 1200 (Socket H5) micro ATX
  • ASUS PRIME H510M-A Intel H510 LGA 1200 (Socket H5) micro ATX
  • ASUS PRIME H510M-A Intel H510 LGA 1200 (Socket H5) micro ATX

Prezzo: 95,00€
  • Categoria: Motherboard
  • Marca: Asus
  • Modello: PRIME H510M-A
  • Codice Produttore: 90MB17C0-M0EAY0
  • Ean: 4711081128465
  • Spedizione: 15,00 €
  • Ritiro in negozio: Gratis
  • Pagamento:
  • Disponibilità: Non Disponibile
Brand:ASUS
Nome del prodotto:PRIME H510M-A
Codice prodotto:90MB17C0-M0EAY0
Codice EAN/UPC:4711081128465
  • Intel LGA 1200 (Socket H5) Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
  • PC micro ATX Intel H510 Realtek ALC887 / Realtek ALC897 7.1 canali
  • DDR4-SDRAM 2 DIMM Non-ECC RAM massima supportata: 64 GB
  • HDD & SSD M.2, SATA numero di dispositivi di archivio supportati: 5
  • Tipo BIOS: UEFI AMI 128 Mbit Jumper di azzeramento CMOS
  • Gigabit Ethernet

Specifiche

Processore
Produttore processore
The manufacturer that produced the processor.
Intel
Presa per processore
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
LGA 1200 (Socket H5)
Processori compatibili
A processor which is compatible with this device
Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Numero massimo processori SMP
processore MP
1
Memoria
Tipi di memoria supportati
Types of memory which can be used with the product.
DDR4-SDRAM
Numero di slot di memoria
2
tipo di slot di memoria
A memory slot
DIMM
Canali di memoria
Dual-channel
Non-ECC
Velocità di memoria supportate
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
2133, 2400, 2666, 2800, 2933 MHz
RAM massima supportata
The maximum internal memory which is available in the product.
64 GB
Senza buffer
Controller di archiviazione
Tipi di unità di archiviazione supportate
The type of storage drives the device is compatible with.
HDD & SSD
Interfacce dell'unità di archiviazione supportate
M.2, SATA
numero di dispositivi di archivio supportati
How many storage drives can be fit into the product at once.
5
Grafica
Risoluzione massima
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height
4096 x 2304 Pixel
Numero di display supportati
The number of displays that can be used with this product.
3
I/O interni
Connettori USB 2.0
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
Connettori USB 3.2 Gen 1 (3.1 Gen 1)
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
1
Numero di connettori SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
Connettore uscita S/PDIF
Connettore audio
Connettore pannello audio frontale
Connettore ATX (24-PIN)
Numero di connettori EATX
1
Connettore ventola CPU
Numero di connettori ventola chassis
2
Connettori periferiche (Molex) (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.
3
Connettore di potenza EPS (8-Pin)
Numero di connettori COM
1
Connettore con potenza 12V
Connettore LED RGB
Pannello posteriore porte I/O
Quantità porte USB 2.0
La porta USB 2.0 ha una velocità di trasmissione data di 480 Mbps ed è diversamente compatibile con la porta USB 1.1 .Si può collegare qualsiasi tipo di dispositivo periferico a questi.
4
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A
2
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Pannello posteriore porte I/O
Quantità porte PS/2
iL numero di connettori PS2 per tastiere e mouse. Il nome deriva dal' IBM Personal System/2.
2
Quantità porte VGA (D-Sub)
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
Quantità porte HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
Versione HDMI
2.0
Quantità DisplayPorts
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor
1
versione DisplayPort
1.4
Uscite per cuffie
Number of sockets /ports where headphones are connected.
1
Microfono, spinotto d'ingresso
The socket where a microphone is connected to the device.
Collegamento in rete
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present
Tipo di interfaccia Ethernet
Gigabit Ethernet
Controller LAN
Intel® I219-V
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Caratteristiche
Chipset scheda madre
The chipset connects the microprocessor to the rest of the motherboard.
Intel H510
Chip audio
Realtek ALC887 / Realtek ALC897
Sistema audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 canali
Componente per
What this product is used as a part of (component for).
PC
Fattore di forma scheda madre
Design of the motherboard (ATX
micro ATX
Famiglia di chipset per scheda madre
The category of motherboard chipset e.g. Intel
Intel
Tipologia alimentazione
What the power source is.
ATX
Numero di fori di montaggio
6
Sistema operativo Windows supportato
Windows vesions wich can be used with the device.
Windows 10 x64
Slot espansione
Slot PCI Express x1 (Gen 3.x)
2
Slot PCI Express x16 (Gen 4.x)
1
Numero di slot di M.2 (M)
1
BIOS
Tipo BIOS
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
Dimensione memoria BIOS
128 Mbit
Jumper di azzeramento CMOS
Dati logistici
Codice del Sistema Armonizzato (SA)
84733020
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
226 mm
Profondità
The distance from the front to the back of something.
211 mm
Contenuto dell'imballo
Cavi inclusi
SATA
Drivers inclusi
