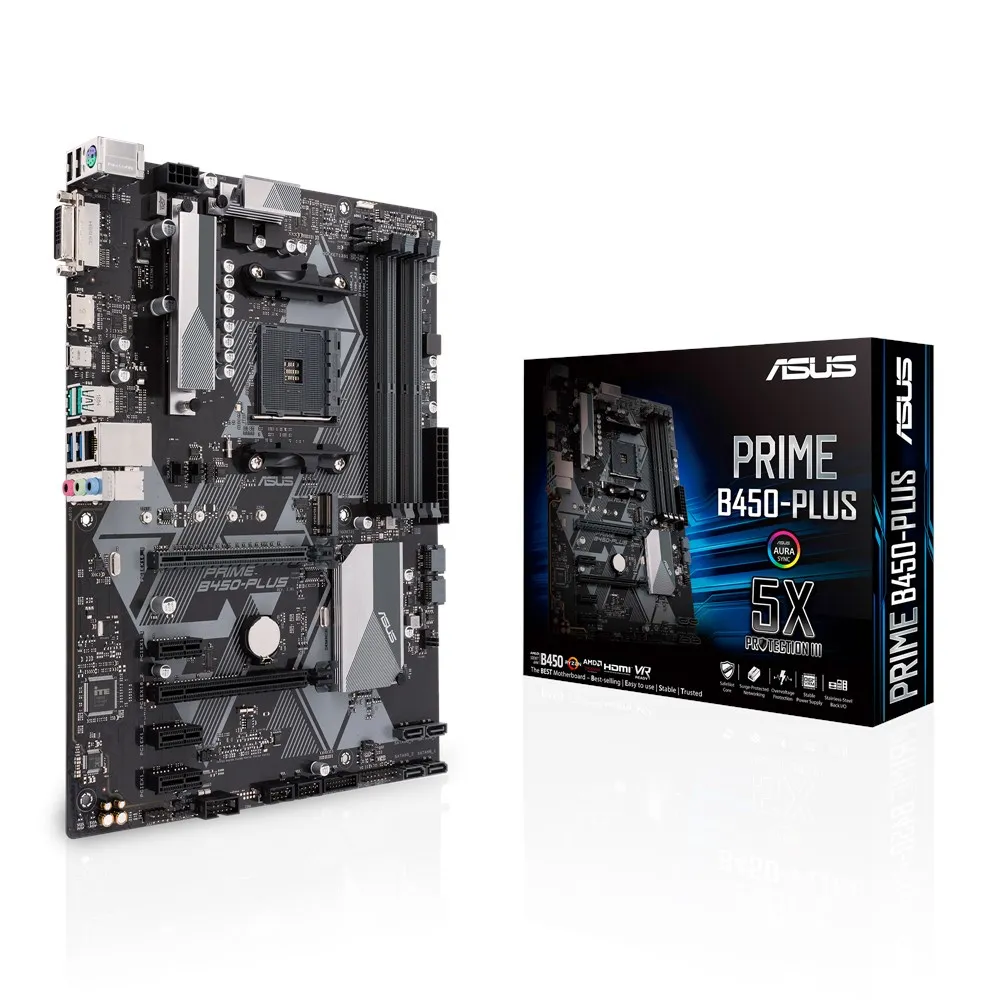

Asus PRIME B450-PLUS

ASUS PRIME B450-PLUS AMD B450 Socket AM4 ATX

Motherboard Asus PRIME B450-PLUS
Prezzo: 116,00€
  • Categoria: Motherboard
  • Marca: Asus
  • Modello: PRIME B450-PLUS
  • Codice Produttore: 90MB0YN0-M0EAYA
  • Ean: 4718017075671
  • Spedizione: 15,00 €
  • Ritiro in negozio: Gratis
  • Pagamento:
  • Disponibilità: Ordinabile
Brand:ASUS
Nome del prodotto:PRIME B450-PLUS
Codice prodotto:90MB0YN0-M0EAY0
Codice EAN/UPC:4718017075671
  • AMD Socket AM4 AMD Athlon, AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, AMD Ryzen™ 7, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
  • PC ATX AMD B450 Realtek ALC887-VD2 7.1 canali
  • DDR4-SDRAM 4 DIMM Data Integrity Check (verifica integrità dati) RAM massima supportata: 64 GB
  • CrossFireX
  • Tipo BIOS: UEFI AMI 128 Mbit Versione ACPI: 6.1 Jumper di azzeramento CMOS
  • Gigabit Ethernet
Brochure ASUS 90MB0YN0-M0EAY0 (pdf)

Specifiche

Processore
Produttore processore
The manufacturer that produced the processor.
AMD
Presa per processore
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
Socket AM4
Processori compatibili
A processor which is compatible with this device
AMD Athlon, AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, AMD Ryzen™ 7, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Numero massimo processori SMP
processore MP
1
Memoria
Tipi di memoria supportati
Types of memory which can be used with the product.
DDR4-SDRAM
Numero di slot di memoria
4
tipo di slot di memoria
A memory slot
DIMM
Canali di memoria
Dual-channel
Data Integrity Check (verifica integrità dati)
ECC è il codice di correzione dell'errore che la memoria è capace di individuare e correggere senza l'intervento dell' utente
Velocità di memoria supportate
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
2133, 2400, 2666, 2800, 3000, 3200 MHz
RAM massima supportata
The maximum internal memory which is available in the product.
64 GB
Senza buffer
Grafica
Tecnologia di processo parallela
Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally
CrossFireX
Risoluzione massima
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height
4096 x 2160 Pixel
I/O interni
Connettori USB 2.0
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
Connettori USB 3.2 Gen 1 (3.1 Gen 1)
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
1
Numero di connettori SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
6
Connettore pannello audio frontale
Connettore del pannello anteriore
Connettore ATX (24-PIN)
Numero di connettori EATX
1
Connettore ventola CPU
Numero di connettori ventola chassis
3
Numero di connettori COM
1
Connettore con potenza 12V
Pannello posteriore porte I/O
Quantità porte USB 2.0
La porta USB 2.0 ha una velocità di trasmissione data di 480 Mbps ed è diversamente compatibile con la porta USB 1.1 .Si può collegare qualsiasi tipo di dispositivo periferico a questi.
2
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A
2
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo C
Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A
2
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Pannello posteriore porte I/O
Quantità porte PS/2
iL numero di connettori PS2 per tastiere e mouse. Il nome deriva dal' IBM Personal System/2.
1
Versione HDMI
2.0b
Quantità porte DVI-D
This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device
1
Collegamento in rete
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present
Tipo di interfaccia Ethernet
Gigabit Ethernet
Controller LAN
Realtek RTL8111H
Wake-on-LAN ready
Caratteristiche
Chipset scheda madre
The chipset connects the microprocessor to the rest of the motherboard.
AMD B450
Chip audio
Realtek ALC887-VD2
Sistema audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 canali
Componente per
What this product is used as a part of (component for).
PC
Fattore di forma scheda madre
Design of the motherboard (ATX
ATX
Famiglia di chipset per scheda madre
The category of motherboard chipset e.g. Intel
AMD
Sistema operativo Windows supportato
Windows vesions wich can be used with the device.
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
Slot espansione
Slot PCI Express x1 (Gen 2.x)
3
Slot PCI Express x16 (Gen 3.x)
Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard.
2
Numero di slot di M.2 (M)
1
BIOS
Tipo BIOS
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
Dimensione memoria BIOS
128 Mbit
Versione ACPI
6.1
Jumper di azzeramento CMOS
Versione System management BIOS (SMBIOS)
3.1
Dati logistici
Codice del Sistema Armonizzato (SA)
84733020
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
305 mm
Profondità
The distance from the front to the back of something.
234 mm
Contenuto dell'imballo
Cavi inclusi
SATA
Manuale dell'utente
Drivers inclusi
